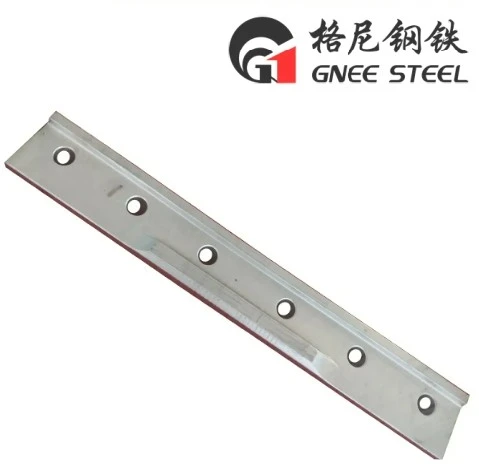

GB 22KG Tren Splice Bar
GB 22KG railway splice bar la, souvan refere yo kòm yon ba jwenti oswa plak pwason, se yon eleman esansyèl nan sistèm tren tren ki fèt pou konekte de seksyon nan tren 22KG, jan sa espesifye nan Estanda Nasyonal Chinwa (GB). Bar épissure sa a jwe yon wòl enpòtan nan asire entegrite estriktirèl ak estabilite tren tren yo. GNEE Rail bay bon jan kalite tren fishplates ki satisfè nòm mondyal yo, tankou Ameriken (AREMA), Alman (DIN), Britanik (BS), Ewopeyen (EN), ak Japonè (JIS). Tout jwenti ray yo ka Customized selon bezwen espesifik ou yo. Kontakte nou jodi a pou plis enfòmasyon!
GB 22KG Railway Splice Bar spesifikasyon
| Pwodwi | Chinwa Standard Rail Fishplate (Joint Bar) | ||||
| Estanda | TB/T2345-2008 | ||||
| Gwosè | 22KG | ||||
| Sifas | Plain, oksid nwa, oswa lòt sou kondisyon | ||||
| Pake | Palèt | ||||
| Livrezon | Depann sou lòd | ||||
GB 22KG Railway Splice Bar spesifikasyon materyèl
| Materyèl kri | Chinwa klas asye 55 # | ||||
| C | Mn | sizo | S | P | |
| 0.52-0.60 | 0.50-0.80 | 0.17-0.37 | Mwens pase oswa egal a 0.035 | Mwens pase oswa egal a 0.035 | |
| Fòs rupture | Rm Pi gran pase oswa egal a 785 MPa | ||||
| Sede fòs | ReL / Rr0.2 Pi gran pase oswa egal a 520 MPa | ||||
| Elongasyon | A Pi gran pase oswa egal a 9% | ||||
| Rediksyon nan zòn | Z Pi gran pase oswa egal a 20% | ||||
| Brinell dite | HBW10 / 3000: HBW 227-388 | ||||
| Fwad Bend | d=3a: 30 degre, pa gen krak | ||||
GB Railway Splice Bar pou vann
| Fishplate pou Chinwa Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
GB 22KG Railway Splice Bar atelye
