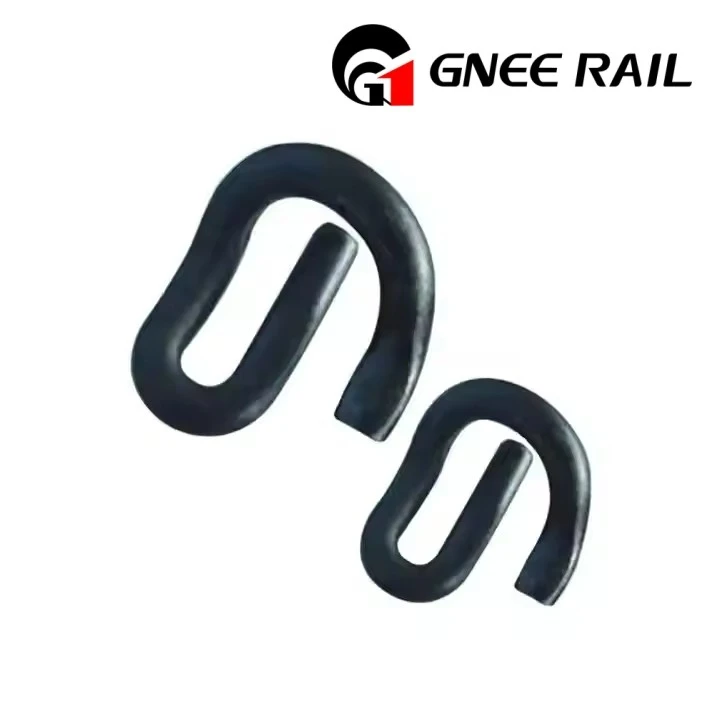

Rail Clip PR309
Clip tren PR309 la, ki se yon pati nan seri PR, yo itilize pou byen tache ray tren yo nan lyen tren yo, asire estabilite tren ak aliyman. GNEE Rail, nou se ISO9001/2008 sètifye ak espesyalize nan pwodwi PR seri klip tren tankou PR85, PR309, PR401, PR601, ak PR601A. Nou swiv pwosedi jesyon kalite ISO strik pandan tout pwodiksyon an, pou asire bon jan kalite rezilta yo. Pèsonalizasyon ki disponib, epi nou akeyi demann ou yo.
Rail Clip PR309 spesifikasyon
| Atik No | Materyèl | Dyamèt | Longè clip | Clip lajè | Pwa | HRC | Presyon | Tès Fatig | Peyi yo |
| PR309 | 60Si2Mn | ø19 | 130 | 0.91 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi | |
| PR401 | 60Si2Mn | ø20 | 127±3 | 38.1±3.0 | 0.97 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi |
| PR601 | 60Si2Mn | ø19 | 0.8 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi | ||
| PR85 | 60Si2Mn | ø19 | 88±3 | 0.8 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi | |
| PR415 | 60Si2Mn | ø20 | 0.8 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi | ||
| PR601 | 60Si2Mn | ø20 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5000000 fwa san repo | Larisi |
GNEE Rail Clip pou vann
| Atik No. | Materyèl | Clip Lenth | Clip Hight | Dyamèt Clip | Dite | Presyon | Tès fatig |
| e2007 | 60Si2MnA | 105±5 | 38max | ø20±0.3 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| D1 | 60Si2MnA | 100±3 | 58±3.0 | ø18±0.25 | 44-48 | Pi gran pase oswa egal a 8.25KN | 5,000,000 fwa san yo pa kase |
| E18 | 60Si2MnA | 100±3 | 58±3.0 | ø18±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| E18 Anti-vòl | 60Si2MnA | 100±3 | 57±3.0 | ø18±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| E19 | 60Si2MnA | 100±3 | 56.5±3.0 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 8.25KN | 5,000,000 fwa san yo pa kase |
| E20 | 60Si2MnA | 100±3 | 56.5±3.0 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 8.25KN | 5,000,000 fwa san yo pa kase |
| e1609 | 60Si2MnA | 93±3 | 30max | ø16±0.25 | 44-48 | Pi gran pase oswa egal a 6.0KN | 5,000,000 fwa san yo pa kase |
| e1809 | 60Si2MnA | 104±3 | 36max | ø18±0.25 | 44-48 | Pi gran pase oswa egal a 7.5KN | 3,000,000 fwa san yo pa kase |
| e1817 | 60Si2MnA | 104±3 | 37.5±3.0 | ø18±0.25 | 44-48 | Pi gran pase oswa egal a 7.5KN | 5,000,000 fwa san yo pa kase |
| e2009 | 60Si2MnA | 106±3 | Mwens pase oswa egal a 37.5 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| e2039 | 60Si2MnA | 104±3 | 37max | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| e2055-1 | 60Si2MnA | 106±3 | 39±2.0 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| e2055-2 | 60Si2MnA | 106±3 | 56.6±3.0 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| e2055 | 60Si2MnA | 106±3 | 56.6±3.0 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase |
| e2056 | 60Si2MnA | 106±3 | 56.6±2.5 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 2.7KN | 5,000,000 fwa san yo pa kase |
| e2063 | 60Si2MnA | 110.5 | 53.4 | ø20±0.25 | 44-48 | Pi gran pase oswa egal a 2.75KN | 5,000,000 fwa san yo pa kase |
| III | 60Si2MnA | 110±2.8 | 63±2.8 | ø20±0.25 | 44-48 | 12.4-13KN | 5,000,000 fwa san yo pa kase |
| PR85 | 60Si2MnA | 88±3 | ø13±0.25 | 44-48 | Pi gran pase oswa egal a 9.5KN | 5,000,000 fwa san yo pa kase | |
| PR309 | 60Si2MnA | 110 | ø19±0.25 | 44-48 | 700-900KN | 5,000,000 fwa san yo pa kase | |
| PR401 | 60Si2MnA | 127±3 | 38.1±3.0 | ø20±0.3 | 44-48 | 5.0-7.0KN | 5,000,000 fwa san yo pa kase |
| SKL-14 | 60Si2MnA | 155±2.0 | ø14±0.2 | 42-47 | Pi gran pase oswa egal a 8.5KN | 5,000,000 fwa san yo pa kase | |
| SKL-3 | 60Si2CrA | 120±2.0 | ø13±0.3 | 42-47 | 8-12KN | 5,000,000 fwa san yo pa kase | |
| SKL-1 | 60Si3CrA | 133±2.0 | ø13±0.3 | 42-47 | 8-12KN | 5,000,000 fwa san yo pa kase |
