AWJ-8 Fastener Systemse yon kaliteBallastless tras Fastener SystemDevlope pou satisfè kondisyon teknik yo nan sistèm pasaje machin pasaje Alman an. Se sistèm nan FASTENER ki fèt anba kondisyon sa yo limite nan gwosè a ak pozisyon nan kalite plak orijinal la ak doub la - blòk balastless tras Groove, epi li se yon elastik ki pa - separe estrikti Fastener ak yonIron Rail Pad.

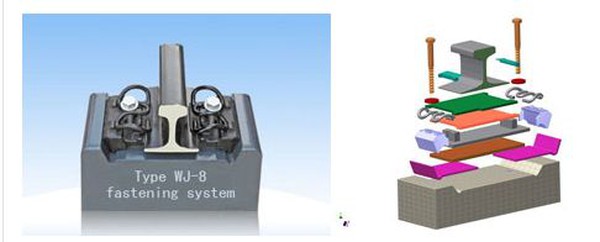

WJ-8 Rail Fastener System Components of Single Sleeper
| Non. | Sijè | Spec. | Kantite/PC yo |
| 1 | Tansyon kranpon | W1/X2 | 4 |
| 2 | Plat machin pou lave | – | 4 |
| 3 | Spike vis | S2/S3 | 4 |
| 4 | Rail kalib defle | Wj8 | 4 |
| 5 | Embedded Dowel | D1 | 4 |
| 6 | Rail kalib insulator | Wj8 | 4 |
| 7 | Kawotchou | Wj8 | 2 |
| 8 | Plak Tie Rail | Wj8 | 2 |
| 9 | Plak fleksib mare | Wj8 | 2 |
Anplis de WJ - 8 gwo vitès sistèm tren an, Rail Gnee tou founi aWj - 7 High-vitès Sistèm Fikse Railway, Tape V Sistèm Fikse RailwayakWj - 12 sistèm tren lou-Haul, pami lòt kalite apwopriye pou senaryo aplikasyon divès kalite.
WJ-7 Rail Sistèm Fikse
| Espesifikasyon pou yon inite nanWJ-7 Rail Sistèm Fikse | ||
| Sijè | Kantite | Materyo |
| Clip | 2 | 60Si2MNA |
| T - Bolt Nut Washer | 2 | Q235A |
| Rail Insulator | 2 | PA66 |
| Mare plak | 1 | QT450-10 |
| Plak tanpon izole | 1 | Gòm |
| Rail Pad | 1 | Eva, oswa kawotchou |
| Anchor boulon | 1 | Q235A |
| Spring machin pou lave | 2 | 60Si2mn |
| Plain machin pou lave | 2 | QT450-10 |
| Dowel plastik | 2 | HDPE, ranfòse nilon 66 (PA66) |
Tape V Sistèm Fikse Railway
| Tape V Fastener System Component List | ||
| Sijè | Kantite | Materyo |
| Clip | 2 | 60Si2MNA |
| Spike vis | 2 | 20mntiB |
| Plat machin pou lave | 2 | Q235A |
| Moso espas | 2 | Q235A |
| Kalib Kabann | 2 | Gòm |
| Rail Pad | 1 | Eva, oswa kawotchou |
| Pad reglabl | 1 | PE |
| Dowel plastik | 2 | PA66 |
3 Kalite Sistèm Fikse Rail High Speed
| Gwo vitès WJ-7 Rail Sistèm Fikse | Gwo vitès WJ-8 Rail Sistèm Fikse | Gwo vitès kalite v sistèm fikse | ||||||
| Sijè | Kantite | Materyo | Sijè | Kantite | Materyo | Sijè | Kantite | Materyo |
| Clip | 2 | 60Si2MNA | Clip | 2 | 60Si2MNA | Clip | 2 | 60Si2MNA |
| T - Bolt Nut Washer | 2 | Q235A | Spike vis | 2 | 20mntiB | Spike vis | 2 | 20mntiB |
| Rail Insulator | 2 | PA66 | Plat machin pou lave | 2 | Q235A | Plat machin pou lave | 2 | Q235A |
| Materyo | ||||||||
| Mare plak | 1 | QT450-10 | Rail Insulator | 2 | PA66 | Moso espas | 2 | Q235A |
| Plak tanpon izole | 1 | Gòm | Gid plak | 2 | Ranfòse nilon 66 (PA66) | Kalib Kabann | 2 | Gòm |
| Rail Pad | 1 | Eva, oswa kawotchou | Rail Pad | 1 | Eva, oswa kawotchou | Rail Pad | 1 | Eva, oswa kawotchou |
| Anchor boulon | 2 | Q235A | Mare plak | 1 | QT450-10 | Pad reglabl | 1 | PE |
| Spring machin pou lave | 2 | 60Si2mn | Dowel plastik | 2 | HDPE, ranfòse nilon 66 (PA66) | Dowel plastik | 2 | HDPE, ranfòse nilon 66 (PA66) |
| Plain machin pou lave | 2 | QT450-10 | Rail reglabl pad | 2 | PE | |||
| Dowel plastik | 2 | HDPE, ranfòse nilon 66 (PA66) | Mare plak reglabl pad | 2 | PE | |||
